Fifth Wheel for Semi Trailer

20+ years of experiences (since 2005)

Implementing ISO 9001-2015

Quality testing by an independent laboratory

Warranty: 18 months since shipping date

Unique lock-jaw/bar design: Easy & Safe locking

Stamped plate with Fabricated frame: Robust & Reliable

Technical standards: GB/T 31879-2015, GB/T 4606, GB/T 4607

Production volume (units): 60,000+ per year


Product Details

In the world of long-haul logistics and trunk transportation, heavy trucks are the warhorses charging into battle, while the fifth wheel (tractor unit) is the "golden hub" connecting power and load capacity.

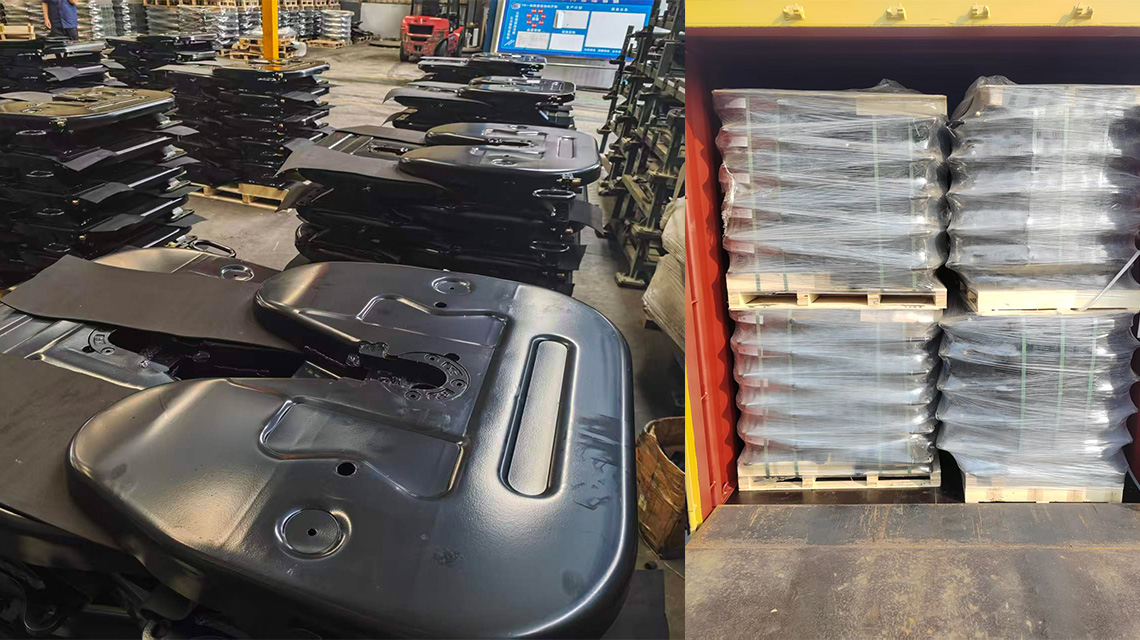

It carries tens of tons of cargo, enduring millions of kilometers of wind and rain. Every turn and every brake tests its safety limits. We understand that for truck drivers and logistics companies, an excellent tractor unit is not only a guarantee of efficiency but also a safety baseline.Fifth Wheel for Semi Trailer.jpg

Product Parameters:

Type

H

D-Value(KN)

Impose(kg)

Weight(kg)

Tilt Angle(U)

Total weight  of
outfit(kg)

Kingpin Size

XH-37C-150

150

152

20000

150

15°

65000

50mm

XH-37C-170

170

152

20000

155

15°

65000

50mm

XH-37C-185

185

152

20000

160

15°

65000

50mm

XH-37C-250

250

152

20000

175

15°

65000

50mm

XH-37C-300

300

152

20000

180

15°

65000

50mm

XH-38C-195

195

260

36000

228

15°

70000

90mm

Utilizing high-strength alloy steel through integrated forging/precision casting, and undergoing rigorous heat treatment and surface strengthening techniques, this design offers impact resistance and fatigue resistance, ensuring structural integrity and preventing breakage even under harsh road conditions and heavy workloads.

Self-lubricating/Maintenance-free design: Optional wear-resistant polymer plates eliminate the need for traditional grease, reducing environmental pollution and significantly shortening routine maintenance intervals.

Adjustable locking mechanism: A unique automatic wear clearance adjustment/manual fine-tuning design effectively reduces the impact on the towing pin during driving, extending its service life and providing a smooth, stable, and worry-free driving experience.

Safety is paramount. Our towing seat employs a patented double-safety locking system, coupled with a highly visible safety locking pin. Drivers can visually confirm the locking status from inside the cab via optional electronic sensors, completely eliminating the risk of decoupling.

Based on advanced topology optimization design, structural weight reduction is achieved while maintaining superior load-bearing capacity. Effectively reduces the overall vehicle weight, helps comply with the new national standards for transportation, and enables you to carry more and travel faster.
